FMO DATABASE

FMODB ID: XVQQ1

Calculation Name: 1DB1-A-Xray14

Preferred Name: Vitamin D receptor

Target Type: SINGLE PROTEIN

Ligand Name: 5-{2-[1-(5-hydroxy-1,5-dimethyl-hexyl)-7a-methyl-octahydro-inden-4-ylidene]-ethylidene}-4-methylene-cyclohexane-1,3-diol

ligand 3-letter code: VDX

PDB ID: 1DB1

Chain ID: A

ChEMBL ID: CHEMBL1977

UniProt ID: P11473

Base Structure: X-ray

Registration Date: 2018-03-13

Reference:

DOI:

IFIE MAP

IFIE Diagram

Modeling method

Optimization	Other
Restraint	Other
Protonation	Based on pKa values evaluated by PROPKA
Complement	SWISS Model
Water	Other
Procedure	Manual calculation

FMO calculation

FMO method	FMO2-MP2/6-31G(d)
Fragmentation	Auto
Number of fragment	419
LigandCharge	VDX=0
Software	MIZUHO/ABINIT-MP 4.0(SMP)

Total energy (hartree)

FMO2-HF: Electronic energy	-4228259.681873
FMO2-HF: Nuclear repulsion	4112107.791054
FMO2-HF: Total energy	-116151.890818
FMO2-MP2: Total energy	-116481.74157

3D Structure

Snapshot

Ligand structure

VDX

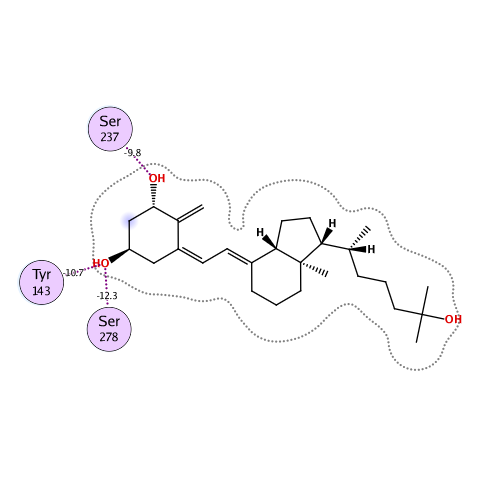

Ligand Interaction

Ligand binding energy

IFIE [kcal/mol]	PIEDA [kcal/mol]				Charge transfer value [e]
IFIE SUMIFIE SUM at MP2 level.	ESElectro static interaction energy.	EXExchange-repulsion energy.	CT+mixCharge transfer and mixing terms energy.	DI(MP2)Dispersion energy.	q(I=>J)Charge transfer value from I to J fragments.
-128.345	-93.584	92.641	-36.401	-91.003	0.042

Interactive mode: IFIE and PIEDA for fragment #424(::)

Summations of interaction energy for fragment #424(::)

IFIE [kcal/mol]	PIEDA [kcal/mol]				Charge transfer value [e]
IFIE SUMIFIE SUM at MP2 level.	ESElectro static interaction energy.	EXExchange-repulsion energy.	CT+mixCharge transfer and mixing terms energy.	DI(MP2)Dispersion energy.	q(I=>J)Charge transfer value from I to J fragments.

Interaction energy analysis for fragmet #424(::)

Snapshot

IFIE Diagram

Base fragment(s) of PIEDA/IFIE

Single fragment	Multi fragments
	Fragment list

Charge [e] FCHARGE : ****** / q_Mulliken : ****** / q_NPA : ******

Distance from base fragment(s) [Å]

Dist

Interaction energy by IFIE and PIEDA
[kcal/mol]

| Total | > | ES | > | EX | >
| CT+mix | > | DI(MP2) | >

Fragment charge [e]

FCHARGE q_Mulliken
q_NPA q(I=>J)

Residue

Res # RES

Sort

Graph Options

X Axis Label
Y Axis Max Y Axis Min
Display ES EX CT+mix DI(MP2)

frag_NumFragment number.	ChainChain species.	Res #Residue number.	RES3-letter code of amino acid residue, ligand and solvent molecule.	FCHARGEFormal charge [e].	q_MullikenFragment charge evaluated by Mulliken charge [e].	q_NPAFragment charge evaluated by natural population analysis(NPA) charge [e].	DISTDistance from Ligand [Å].	TotalIFIE at MP2 level [kcal/mol].	ESElectro static interaction energy by PIEDA [kcal/mol].	EXExchange-repulsion energy by PIEDA [kcal/mol].	CT+mixCharge transfer and mixing terms energy by PIEDA [kcal/mol].	DI(MP2)Dispersion energy by PIEDA [kcal/mol].	q(I=>J)Charge transfer value from I to J fragmens [e].
