01 Search
検索ページからIFIEデータを検索できます。現在、PDB ID Search,Keyword Search,Blast Searchの3種類の検索方法があります。
Under Construction Under Construction Under Construction Under Construction
BaseStructureをX-ray、NMR、MDから選択できます。
Under Construction Under Construction Under Construction Under Construction
ID Search
PDB IDを使用して検索します。
Under Construction Under Construction Under Construction Under Construction
検索例:「1ERE」
Under Construction Under Construction Under Construction Under Construction
Keyword Search
キーワードを使用して検索します。
Under Construction Under Construction Under Construction Under Construction
検索例:「DIETHYLSTILBESTROL」「Estrogen receptor alpha」
Under Construction Under Construction Under Construction Under Construction
Blast Search
配列を使用して相同性検索をします。
Under Construction Under Construction Under Construction Under Construction
検索例:「PTFYRQELNKTIWEVPERYQNLSPVGSGAYGSVCAAFDTKTGLRVAVKKLSRPFQSIIHAKRTYRELRLLKHMKHENVIGLLDVFTPARSLEEFNDVYLVTHLMGADLNNIVKCQKLTDDHVQFLIYQILRGLKYIHSADIIHRDLKPSNLAVNEDCELKILDFGLARHTDDEMTGYVATRWYRAPEIMLNWMHYNQTVDIWSVGCIMAELLTGRTLFPGTDHIDQLKLILRLVGTPGAELLKKISSESARNYIQSLTQMPKMNFANVFIGANPLAVDLLEKMLVLDSDKRITAAQALAHAYFAQYHDPDDEPVADPYDQSFESRDLLIDEWKSLTYDEVISFVPP」
Under Construction Under Construction Under Construction Under Construction
E-Value-Cutoff
Blast SearchのCutoff値を指定できます。
Under Construction Under Construction Under Construction Under Construction
検索例:「E-144」
Under Construction Under Construction Under Construction Under Construction
Ligand Structure Search
描画した分子構造から取得したCanonical SMILESを使用してLigandの構造検索を行います.
Under Construction Under Construction Under Construction Under Construction
検索例: "Smiles:c1ccc2ccccc2c1"
Under Construction Under Construction Under Construction Under Construction
Method
Ligandの構造検索の方法を指定できます.
Under Construction Under Construction Under Construction Under Construction
検索例:「Substructure」
Under Construction Under Construction Under Construction Under Construction
Methodの種類
Under Construction Under Construction Under Construction Under Construction
Method |
説明 Under Construction Under Construction Under Construction Under Construction |
---|---|
Substructure |
描画した構造を部分構造として持つLigandを登録データから検索します。 Under Construction Under Construction Under Construction Under Construction |
Similarity (MACCS 166 keys) |
描画した構造を使い,登録されているLigandとのMACCS Key(166bit) による類似度検索を行います. Under Construction Under Construction Under Construction Under Construction |
AsIs |
描画した構造と完全一致するLigandを登録データから検索します。 Under Construction Under Construction Under Construction Under Construction |
02 Result
検索を実行すると検索結果が表示されます。該当のFMODB IDをクリックすると詳細データが閲覧できます。
Under Construction Under Construction Under Construction Under Construction
フィールド付きのページを表示
Under Construction Under Construction Under Construction Under Construction
各フィールドの機能
Under Construction Under Construction Under Construction Under Construction
Criteria
検索方法と検索に使用したIDやキーワード、Base Structure等を表示します。
Under Construction Under Construction Under Construction Under Construction
Download
Downloadしたいファイルの種類を選択してからDownloadをクリックするとDownloadできます。
Under Construction Under Construction Under Construction Under Construction
Summary for all items以外の場合はチェックしたFMODB IDのみDownloadします。
Under Construction Under Construction Under Construction Under Construction
ダウンロード可能なファイル
Under Construction Under Construction Under Construction Under Construction
名前 Under Construction Under Construction Under Construction Under Construction |
説明 Under Construction Under Construction Under Construction Under Construction |
---|---|
Summary for all items |
全ての結果について、Resultsフィールドの出力をcsvファイルにして保存します。 Under Construction Under Construction Under Construction Under Construction |
Summary for checked items |
チェックをつけた結果のみについて、Resultsフィールドの出力をcsvファイルにして保存します。 Under Construction Under Construction Under Construction Under Construction |
Calculation Data |
チェックをつけた結果について、logファイルやpdbファイル、出力などの計算ファイルをzipで保存します。(一度に最大10個まで) Under Construction Under Construction Under Construction Under Construction |
CheckPoint File |
チェックをつけた結果について、FMO計算のチェックポイントファイルをcpf形式で保存します。(一度に最大10個まで) Under Construction Under Construction Under Construction Under Construction |
Sort
Sortを実行するには,並び替え方法を選択した後に「Sort Results」をクリックします。
Under Construction Under Construction Under Construction Under Construction
FMODB IDを選択して「Display only checked items」にチェックを入れてSortすると、選択したFMODB IDのみを表示できます。
Under Construction Under Construction Under Construction Under Construction
Results

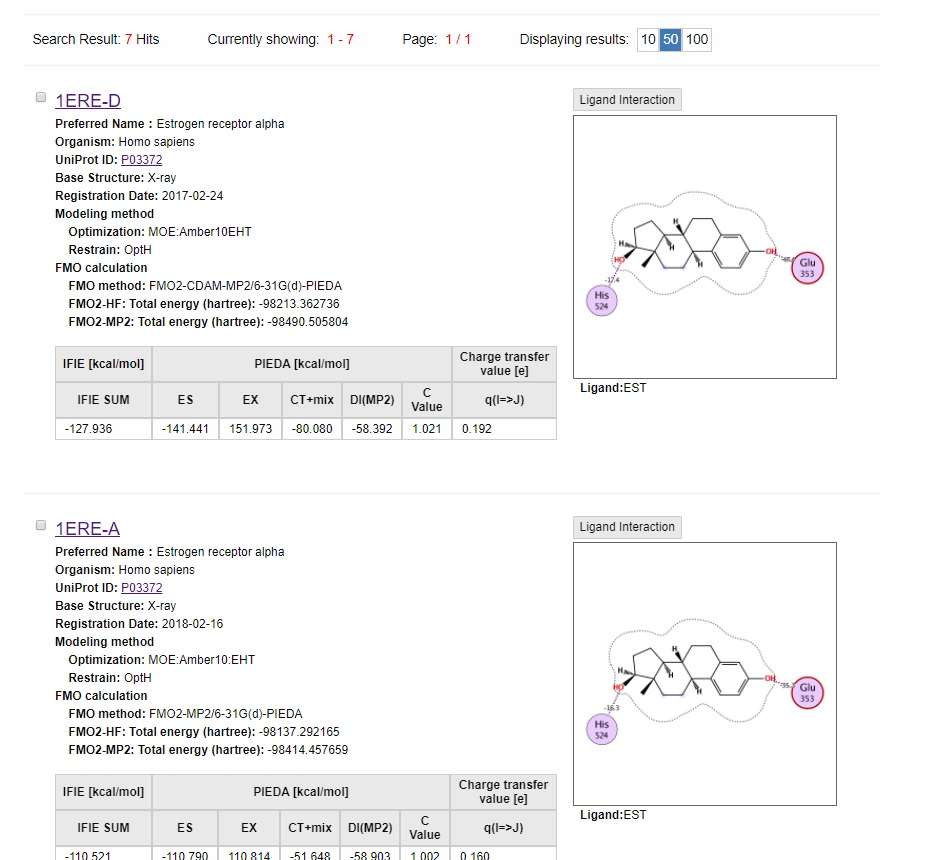

検索にヒットしたデータを表示します。FMODBIDをクリックすると詳細ページが表示されます。
Under Construction Under Construction Under Construction Under Construction
Ligand binding energyとGraphの要素
Under Construction Under Construction Under Construction Under Construction
名前 Under Construction Under Construction Under Construction Under Construction |
説明 Under Construction Under Construction Under Construction Under Construction |
---|---|
IFIE SUM |
ES,EX,CT+mix,DI(MP2),q(I=>J)の合計値 Under Construction Under Construction Under Construction Under Construction |
ES |
静電相互作用エネルギー Under Construction Under Construction Under Construction Under Construction |
EX |
交換反発エネルギー Under Construction Under Construction Under Construction Under Construction |
CT+mix |
電荷移動相互作用エネルギー Under Construction Under Construction Under Construction Under Construction |
DI(MP2) |
分散エネルギー Under Construction Under Construction Under Construction Under Construction |
q(I=>J) |
フラグメントIからJへの電荷移動量(マリケン電荷[au]) Under Construction Under Construction Under Construction Under Construction |
PDBID-Chain |
検索にヒットしたPDB IDとChainの組み合わせ。 Under Construction Under Construction Under Construction Under Construction |
Jumpボタン
Under Construction Under Construction Under Construction Under Construction
「TOP」ボタンをクリックするとページ上部に、「Graph」ボタンをクリックするとページ下部のGraphの近くまでスクロールします。
Under Construction Under Construction Under Construction Under Construction

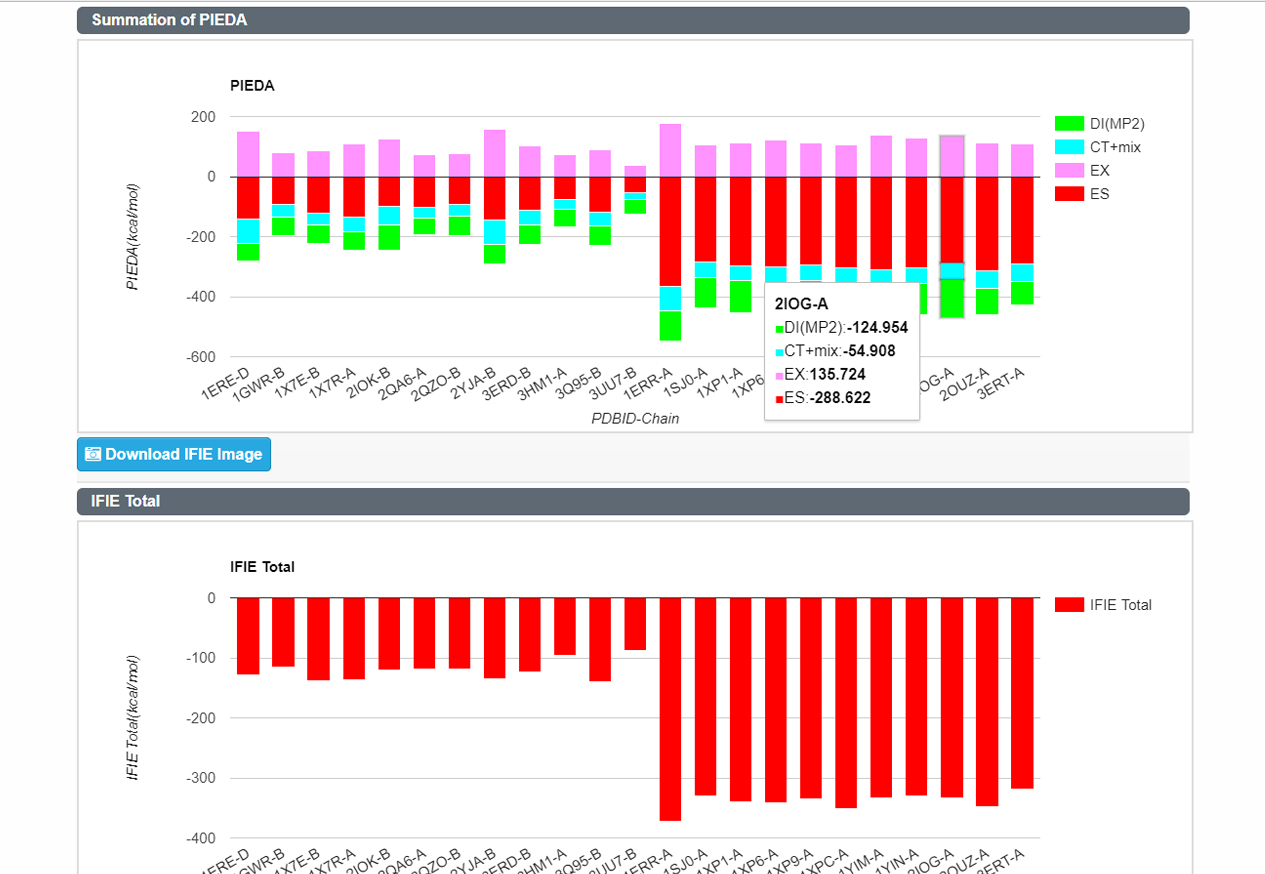

ページ下部にはSummation of PIEDAとIFIE Total、FMO2_MP2:Total_energyのグラフが表示されます。
Under Construction Under Construction Under Construction Under Construction
「Replot Graph」で表示するPIEDA成分(ES,EX,CT+mix,DI(MP2))を絞り込むことができます。
Under Construction Under Construction Under Construction Under Construction
03 Detail
検索結果のPDB ID-Chainをクリックすると詳細データが閲覧できます。
Under Construction Under Construction Under Construction Under Construction
ページ右上部の複合体構造の図は移動と拡大縮小が可能で、マウスを乗せると残基名や距離、DI値を表示します。
Under Construction Under Construction Under Construction Under Construction
PDBファイル、CheckPointファイル、計算データ、IFIEデータがダウンロード可能です。
Under Construction Under Construction Under Construction Under Construction

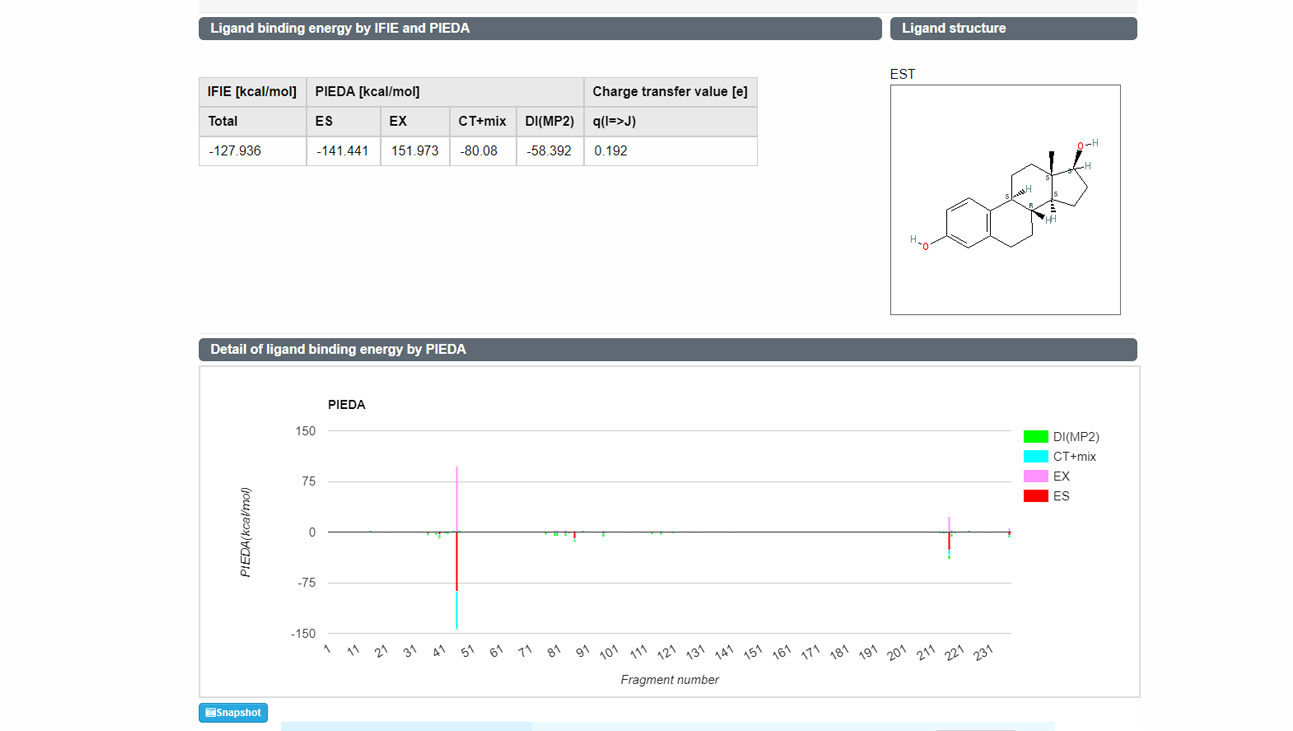

ページ下部にはリガンドと各FragmentとのPIEDAのグラフ、絞り込みボックス、IFIEデータテーブルが表示されます。
Under Construction Under Construction Under Construction Under Construction

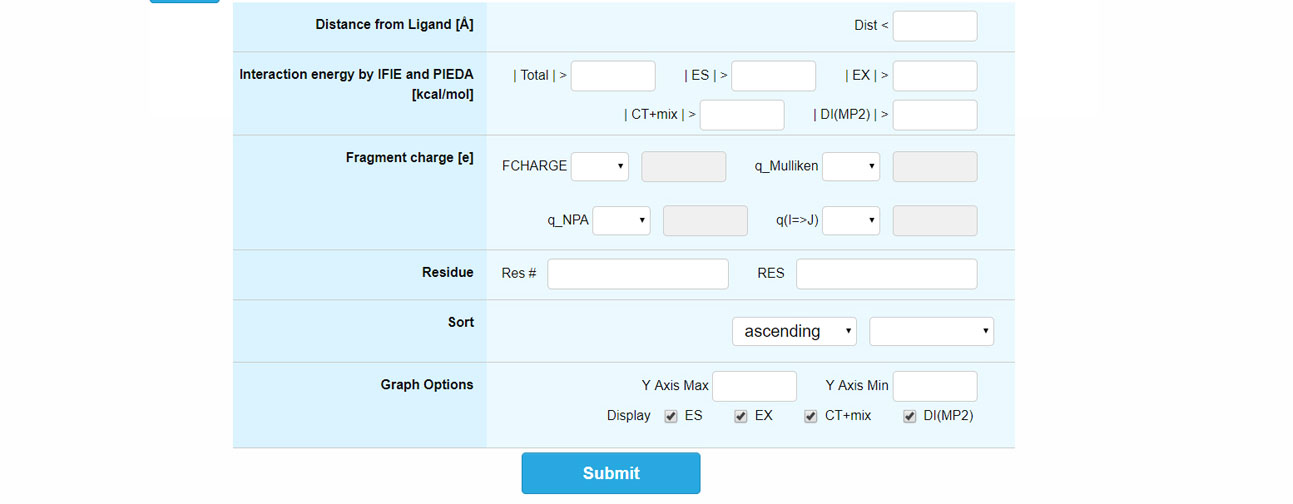

PIEDAとIFIEのフィルタリングオプション
Under Construction Under Construction Under Construction Under Construction
オプション Under Construction Under Construction Under Construction Under Construction |
オプション Under Construction Under Construction Under Construction Under Construction |
---|---|
Base fragment(s) of PIEDA/IFIE |
PIEDAとIFIEデータを計算する際にベースとなるフラグメントを指定します。デフォルトはLigandです。 Under Construction Under Construction Under Construction Under Construction |
Distance from Ligand [Å] |
リガンドからの距離で表示する残基を絞り込みます。 Under Construction Under Construction Under Construction Under Construction |
Interaction energy by IFIE and PIEDA [kcal/mol] |
TotalやESなどの絶対値で表示する残基を絞り込みます。 Under Construction Under Construction Under Construction Under Construction |
Fragment charge [e] |
Fragment chargeに関する値で表示する残基を絞り込みます。 Under Construction Under Construction Under Construction Under Construction |
Residue |
残基番号か残基名で表示する残基を絞り込みます。カンマ区切りで複数指定できます。 Under Construction Under Construction Under Construction Under Construction |
Sort |
選択した項目で降順に並び替えます。 Under Construction Under Construction Under Construction Under Construction |
Graph Options |
グラフのY軸の最大値と最小値を設定したり、表示するPIEDA成分(ES,EX,CT+mix,DI(MP2))を選択できます。 Under Construction Under Construction Under Construction Under Construction |
04 IFIE Interaction Map
詳細ページからIFIE Interaction Mapに移動して、フラグメント同士の相互作用を見ることができます。
Under Construction Under Construction Under Construction Under Construction
X軸がfragmentI、Y軸がfragmentJで、Mapにマウスを乗せると値が表示されます。
Under Construction Under Construction Under Construction Under Construction
Mapの赤色は斥力(マイナスの値)を、青は引力(プラスの値)を表しています。
Under Construction Under Construction Under Construction Under Construction
Value
表示する値を下記から選択できます。
Under Construction Under Construction Under Construction Under Construction
・HF
・MP2 -> Default
・SCS MP2
・DI (MP2)
・DI (SCS MP2)
Color
表示する値の範囲を指定できます。
Under Construction Under Construction Under Construction Under Construction
Zoom
表示するフラグメントの範囲を指定できます。
Under Construction Under Construction Under Construction Under Construction
05 Download
ヘッダーの「Download」のリンクをクリックすると複数ファイルのダウンロード用のページを閲覧できます。
Under Construction Under Construction Under Construction Under Construction
FMODB IDをカンマか半角スペースで区切って入力し,ダウンロードしたいファイルを選択してSubmitします。
Under Construction Under Construction Under Construction Under Construction
入力例:「5P4NP,XQ8VY XR199」
Under Construction Under Construction Under Construction Under Construction
Reference
【FMO法関連】
Under Construction Under Construction Under Construction Under Construction
1. Kitaura, K.; Ikeo, E.; Asada, T.; Nakano, T.; Uebayasi, M. Fragment Molecular Orbital Method: an Approximate Computational Method for Large Molecules. Chem. Phys. Lett. 1999, 313, 701-706.
2. Fedorov, D. G.; Kitaura, K., The Fragment Molecular Orbital Method: PRACTICAL APPLICATION TO LARGE MOLECULAR SYSTEM, CRC Press, (2009).
3.Tanaka, S.; Mochizuki, Y.; Komeiji, Y.; Okiyama, Y.; Fukuzawa, K. Electron-correlated Fragment-molecular-orbital Calculations for Biomolecular and Nano Systems. Phys. Chem. Chem. Phys. 2014, 16, 10310-10344.
【PIEDA関連】
Under Construction Under Construction Under Construction Under Construction
4. Fedorov, D. G.; Kitaura, K. Pair interaction energy decomposition analysis. J. Comp. Chem. 2007, 28, 222-237.
5. Tsukamoto, T.; Kato, K.; Kato, A.; Nakano, T.; Mochizuki, Y.; Fukuzawa, K. Implementation of Pair Interaction Energy Decomposition Analysis and its Applications to Protein-Ligand Systems. J. Comput. Chem. Jpn. 2015, 14, 1-9.
【ABINIT-MP/BioStation Viewer関連】
Under Construction Under Construction Under Construction Under Construction
6. ABINIT-MP/BioStation Viewer, http://www.ciss.iis.u-tokyo.ac.jp/riss/dl/download/index.php
7. MIZUHO/BioStation, https://www.mizuho-ir.co.jp/solution/research/life/macromolecule/biostation/index.html
